Chassis Teardown & Bench Restoration

To preserve the Philips FTV1.5E AA architecture, a complete hardware teardown was executed. This visual sequence documents the deep electronic recapping, driver board inspection, and technical maintenance required to keep the legendary 1998 Fujitsu plasma panel running.

Step-by-Step Hardware Logistics

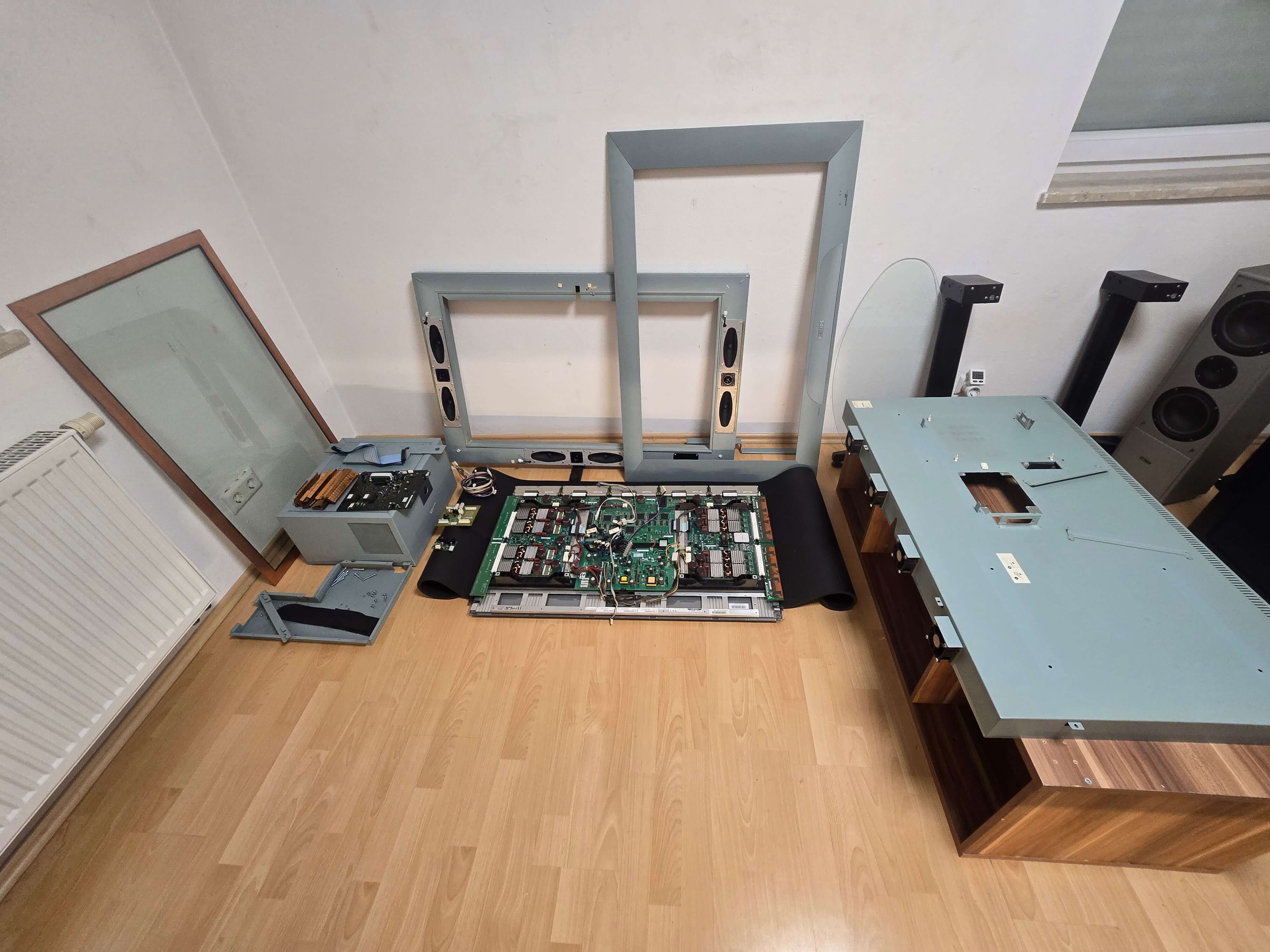

Teardown 0101: The Logistics Center
An overview of the massive workspace required to store the panel frame, external system box, and peripheral components during reconstruction.

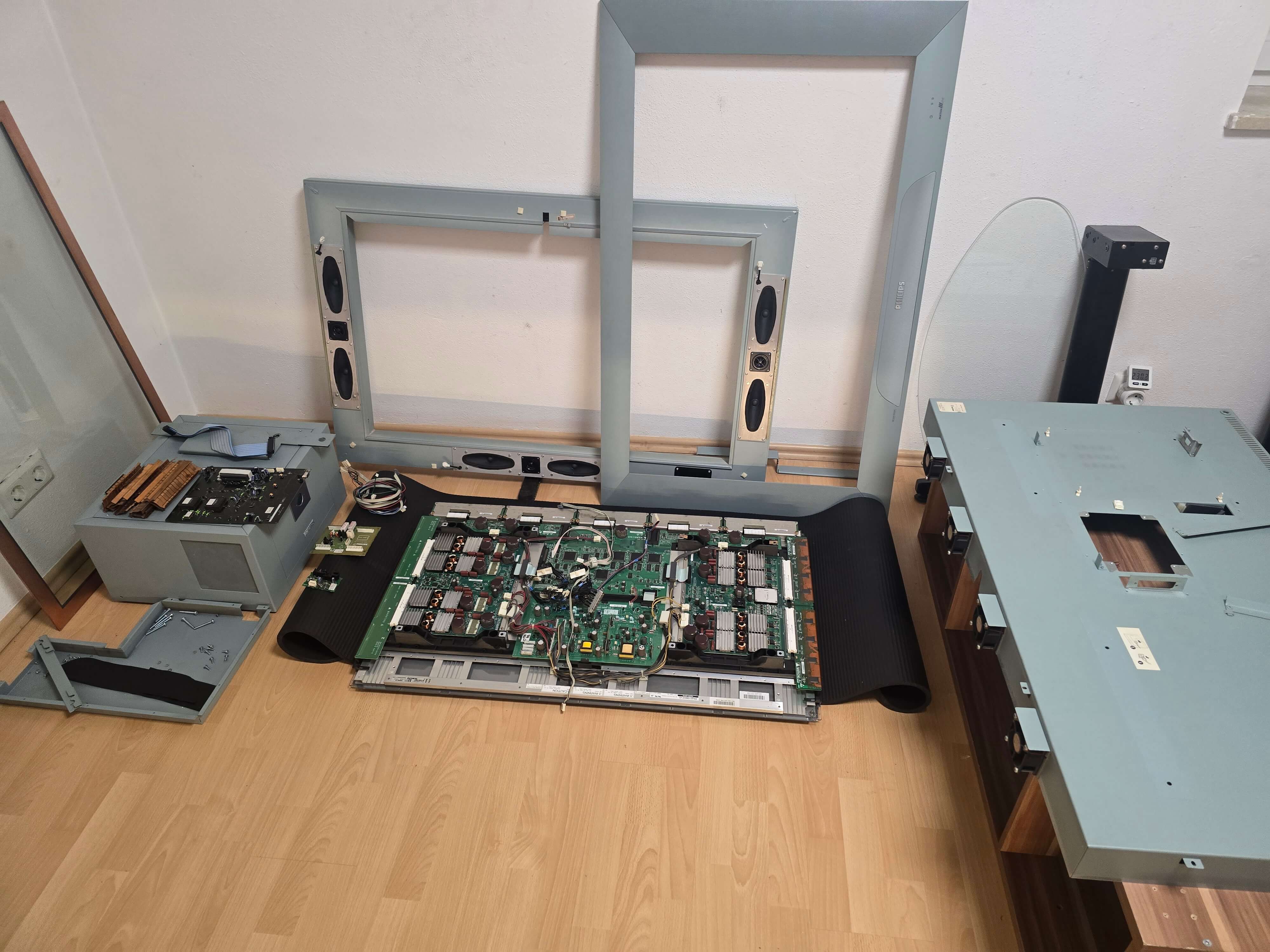

Teardown 0202: Disassembly & Inspection
The bare analog FTV1.5E chassis completely exposed on the workbench, surrounded by diagnostic gear for structural component analysis.

Teardown 0303: Japanese Heritage
A close-up of the original factory manufacturing sticker by Fujitsu General Limited, confirming its production history and frame type.

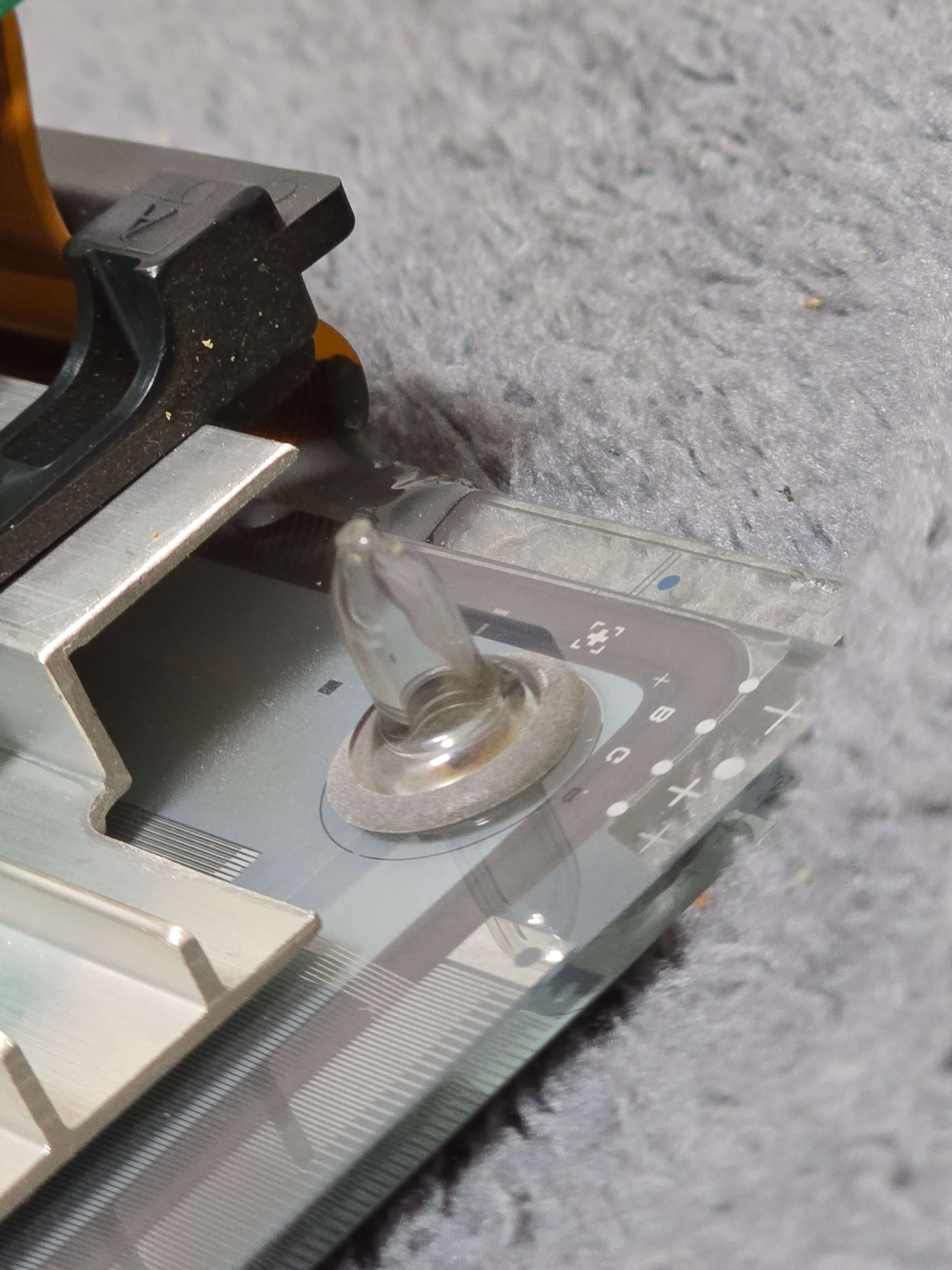

Teardown 0404: High-Voltage Discharge Core
Detailed view of the sensitive glass trigger bulb component, responsible for safe ignition arcs within the display system.

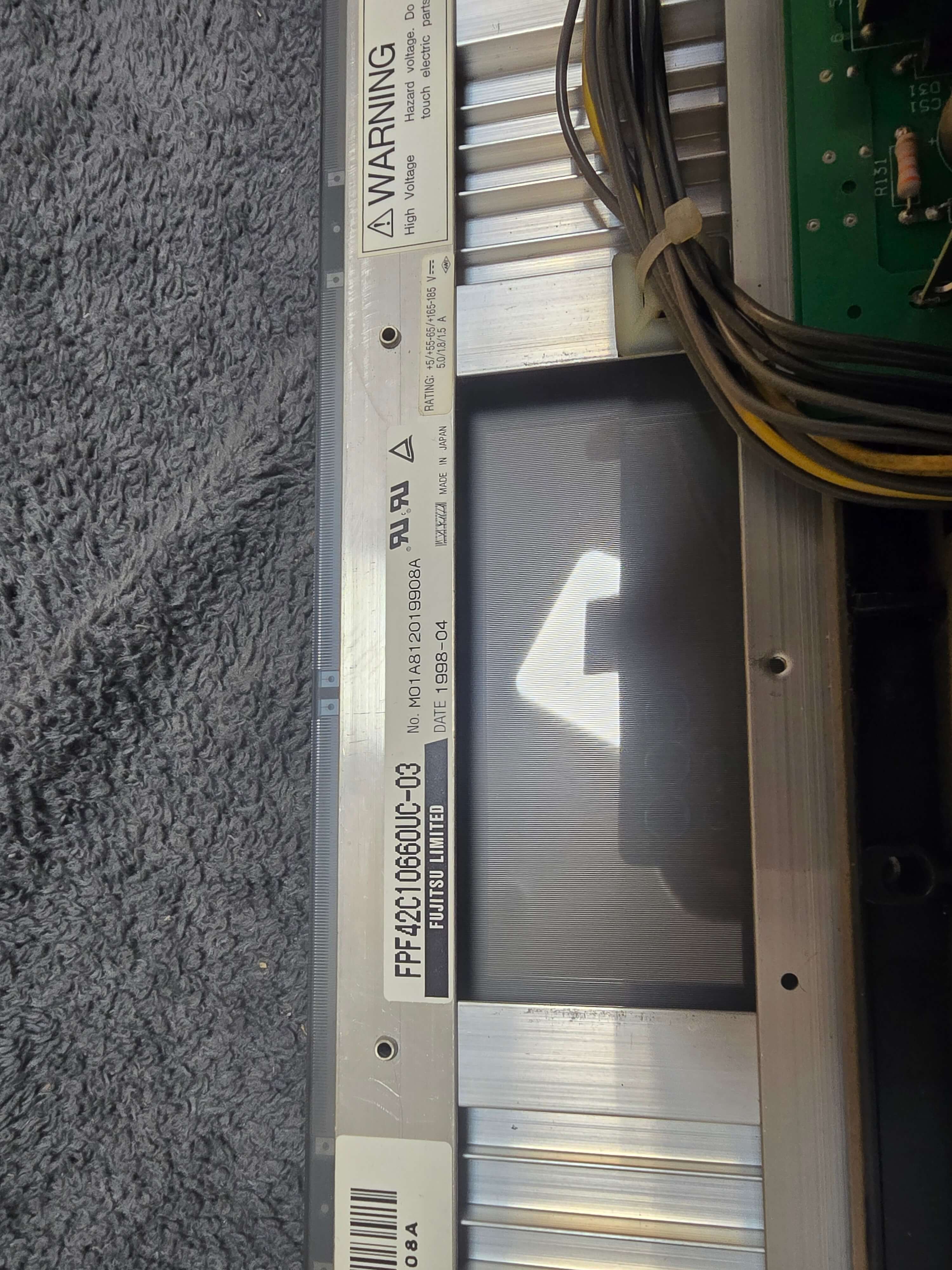

Teardown 0505: Driver Board Shielding
Inspecting the massive, heavily shielded internal sub-chassis unit that delivers high-frequency voltages to the plasma cells.

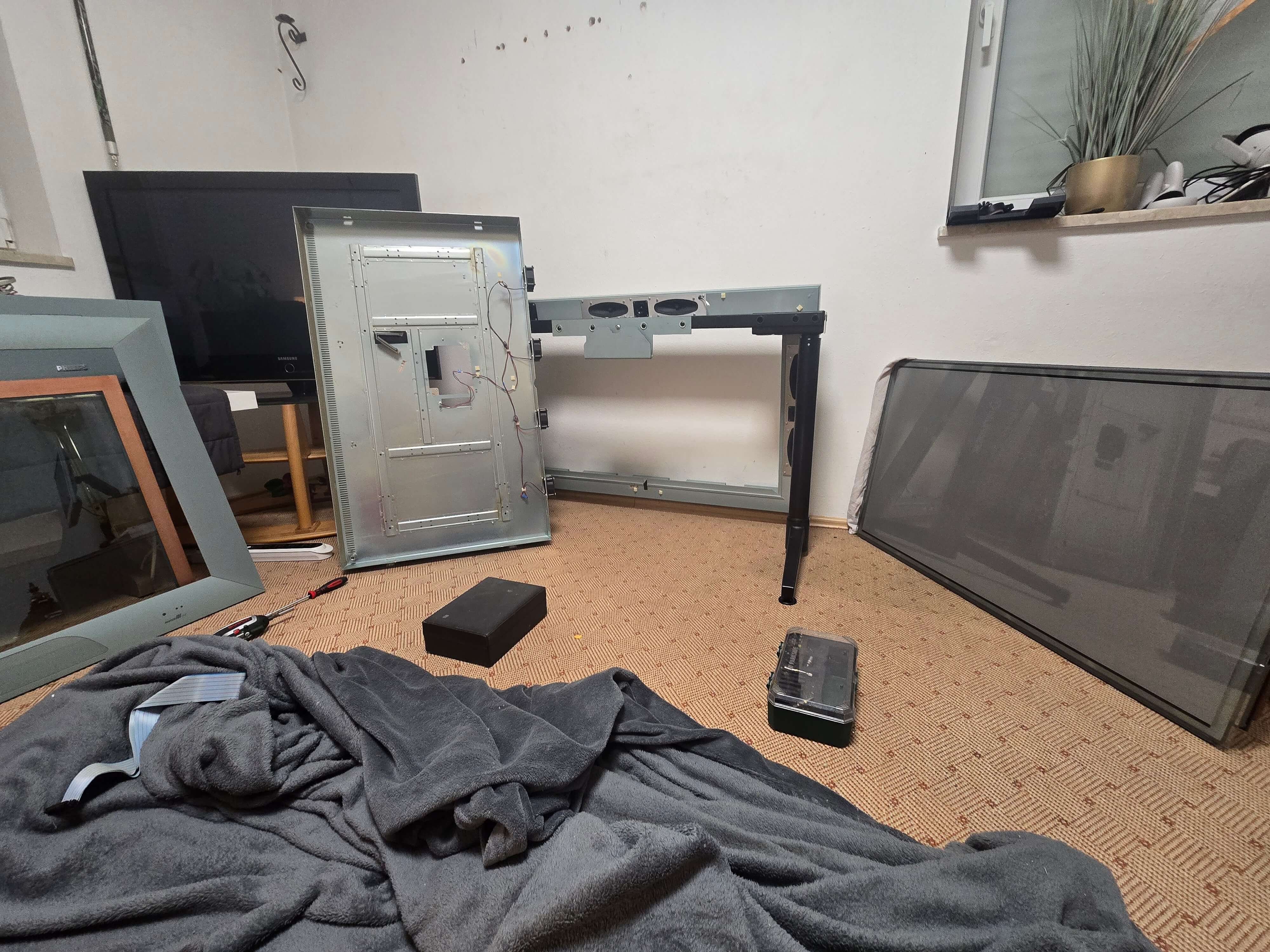

Teardown 0606: Pre-Assembly Setup
Preparing the heavy structural aluminum rear housing and frame components on the living room test bench.

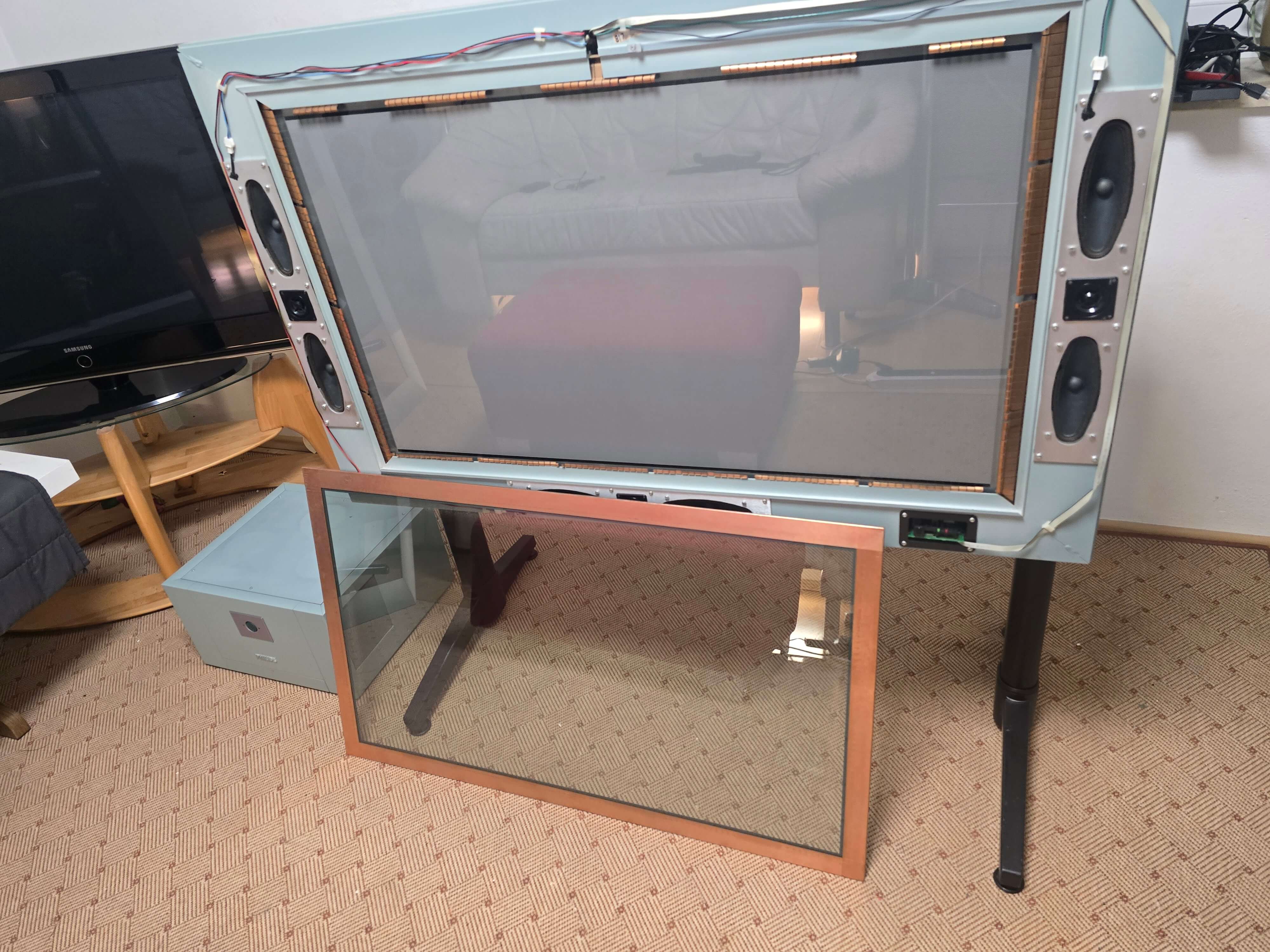

Teardown 0707: The 42-Inch Beast Stands
First vertical test fitting of the massive 1998 panel structure, preparing the data interfaces for the external system box connection.

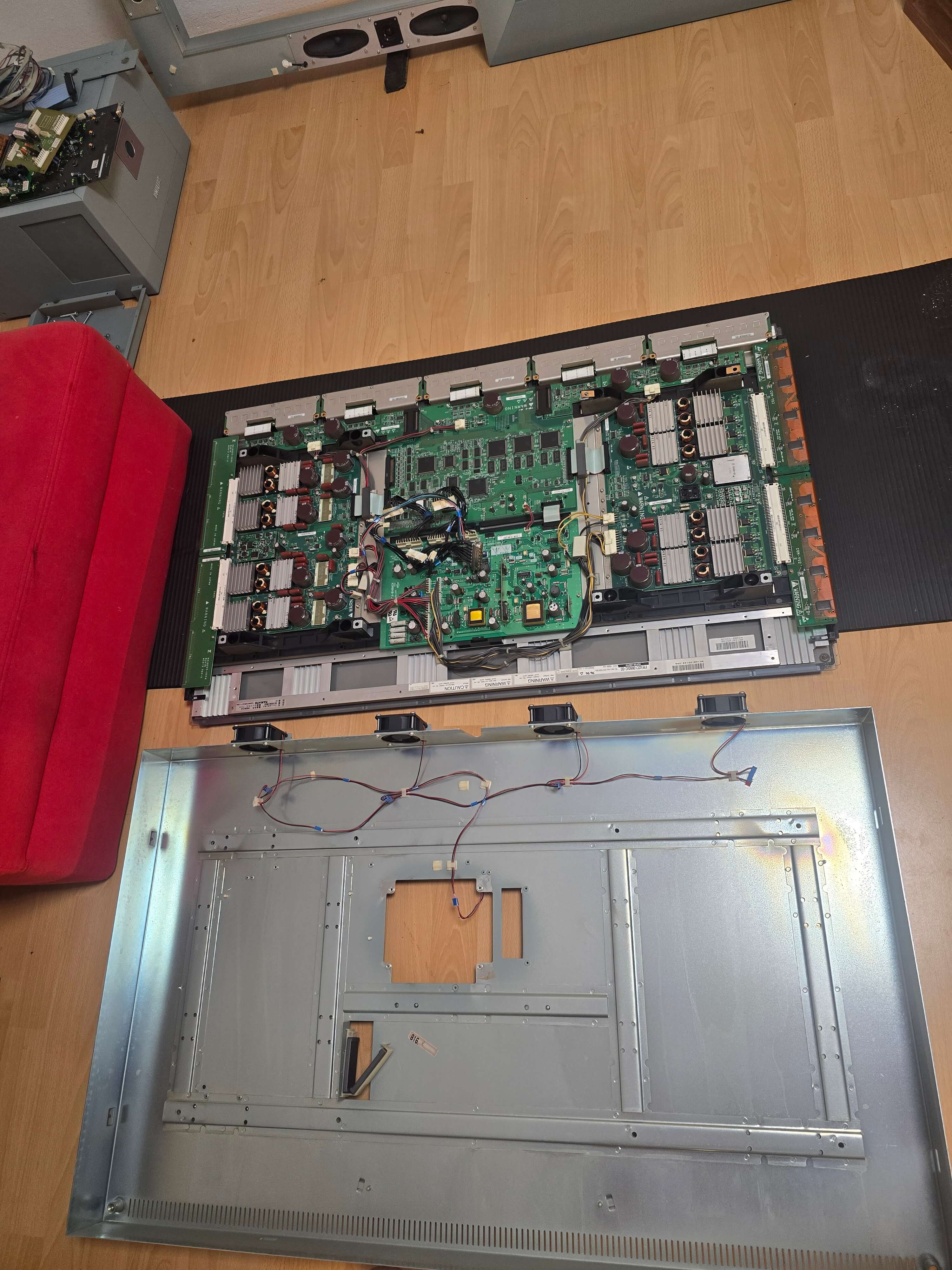

Teardown 0808: Final Board Calibration
Aligning the re-capped mainboard back into its lower steel structural tray before the critical first hardware power-up routine.
